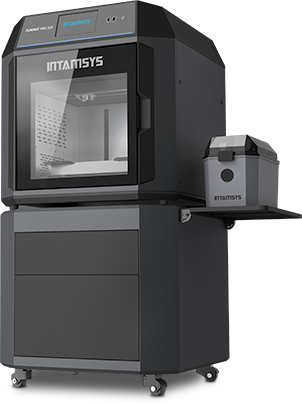

FUNMAT PRO 310
BRING INDUSTRIAL PERFORMANCETO YOUR DESKTOP
Watch Video
A Staple of Industrial Manufacturing: Print Multiple Engineering Materials
Engineering Materials
Fiber Composite Materials
Support Materials
Optimal Impact Resistance
Good Mechaincal Strength
Resistant to High & Low Temperatures
Cost-Effective
Thermoplastic 3D Printing Filament
High Dimensional Stability
Good Processability
High Tensile Strength and Rigidity
Excellent Heat Resistance
Excellent Abrasion Resistance
No Visible Interlayer Marks
Good Surface Quality
By Bringing Industrial Performance to Desktop 3D Printing Enabling
Additive Manufacturing to Empower More Innovators

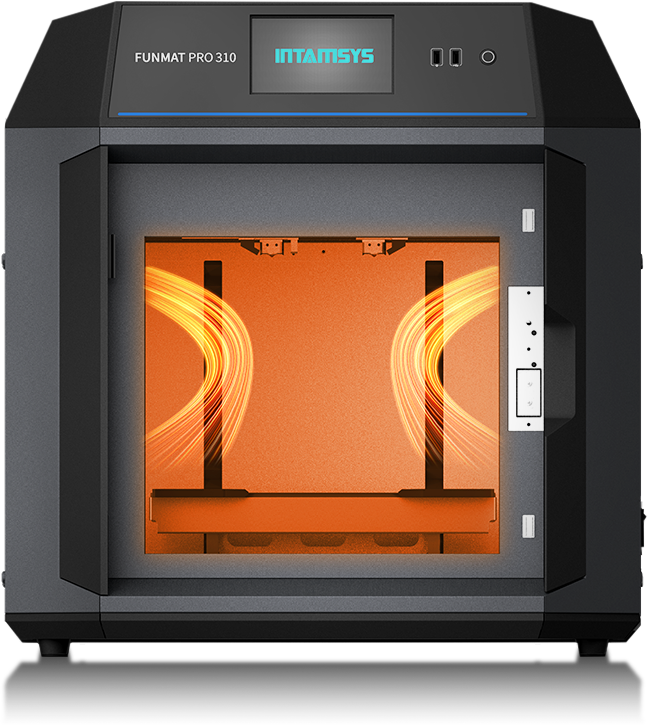

Superior 100°C Thermostatic Chamber for
Enhanced Mechanical Properties of Printed Parts
Actively heated thermostatic build chamber with temperatures up to 100°C, ensuring low internal stresses and good interlayer bonding of parts. Provide better mechanical properties and suitable for printing all types of engineering plastics.

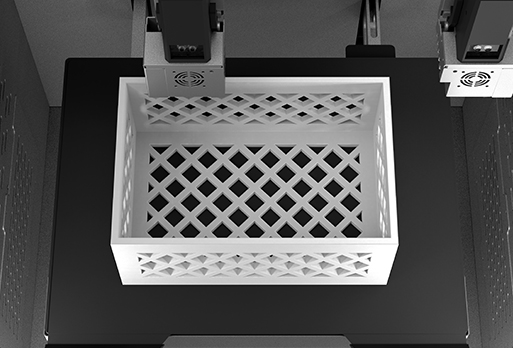

Reduce thermal deformation and shrinkage of the model during the printing process, avoiding warping to achieve large-format (305 x 260 x 260 mm) printing.

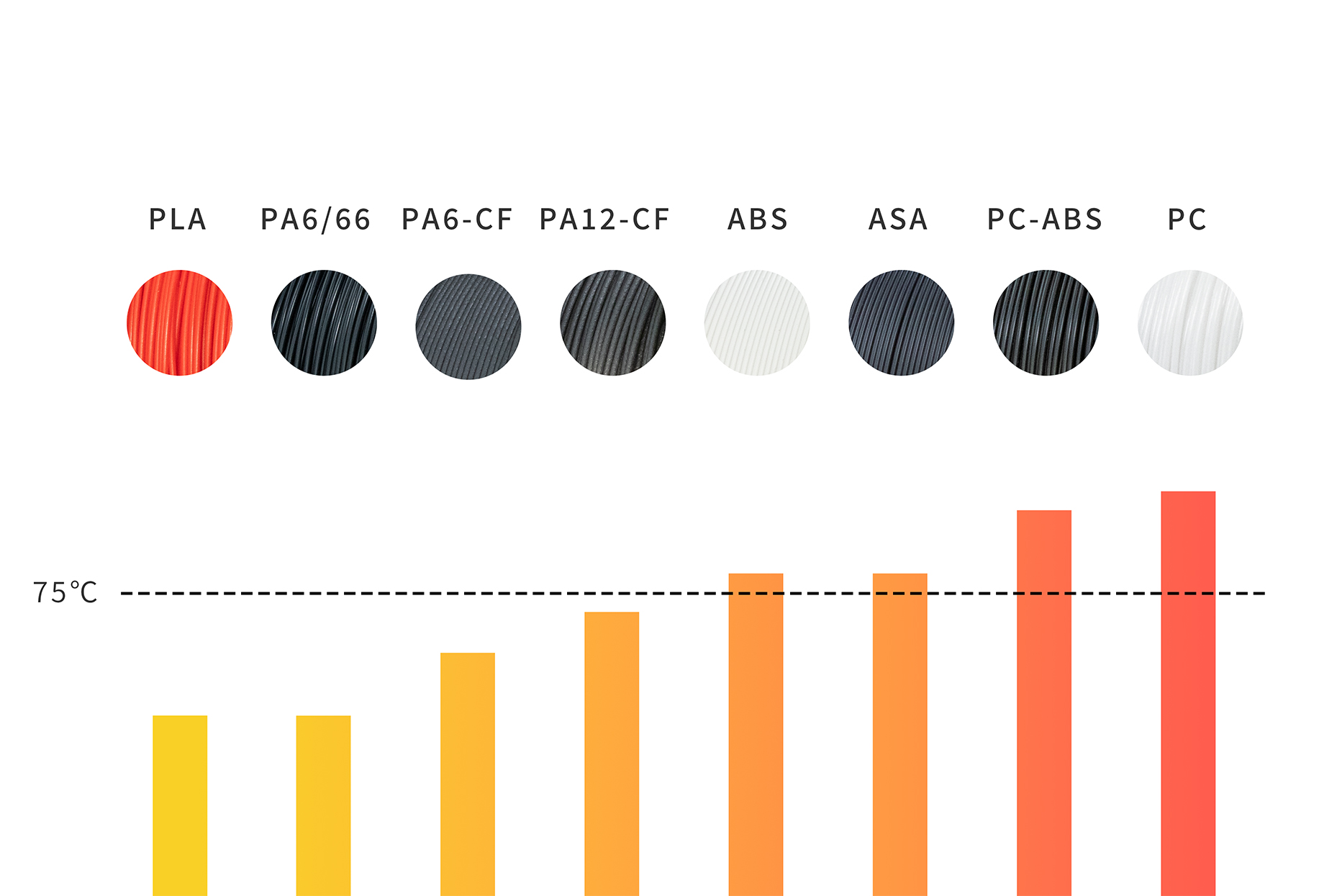

The engineering material PC is significantly affected by temperature during the printing process. When the length of one edge exceeds 150 mm, a constantly heated chamber at 100°C can avoid warping, delamination, cracking, deformation, and other issues with the printed part.
Based on insights into material properties and the optimization of the printing process, the best performance of the material can be achieved. This can improve the Z-direction tensile strength of the printed parts.

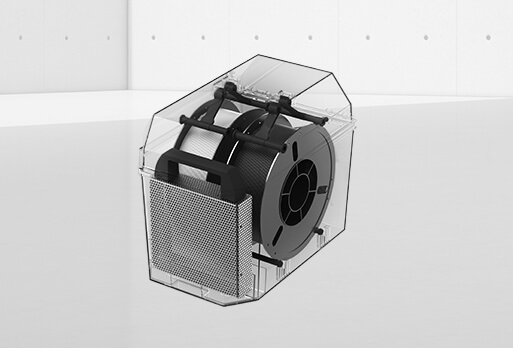

INTAM™ Box with Reusable Molecular Sieve to Keep Filament Dry
Ensures Optimal Printing Conditions for the Materials
Standard independent sealed keep-dry chamber with reusable molecular sieve. Its active moisture absorption function maintains long-term low humidity, eliminating the need to repeatedly dry the filaments.

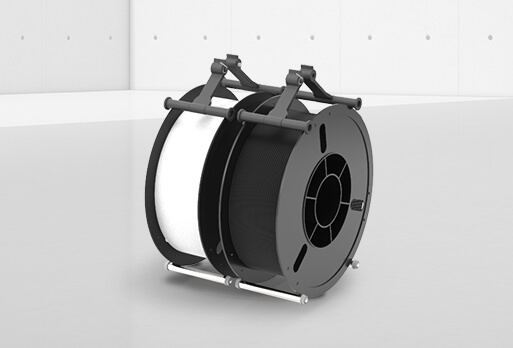

The anti-tangle design avoids tangling and knotting of filament to ensure continuous printing.

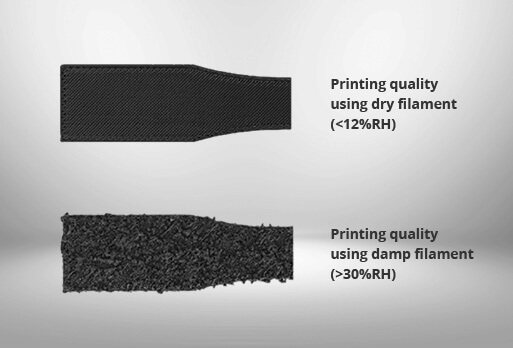

Compared with damp filament, printing with dry filament may avoid warping, bubbles, and burrs, ensuring continuous high-quality printing of moisture-absorbent materials like Nylon (PA, PA-CF) and others.

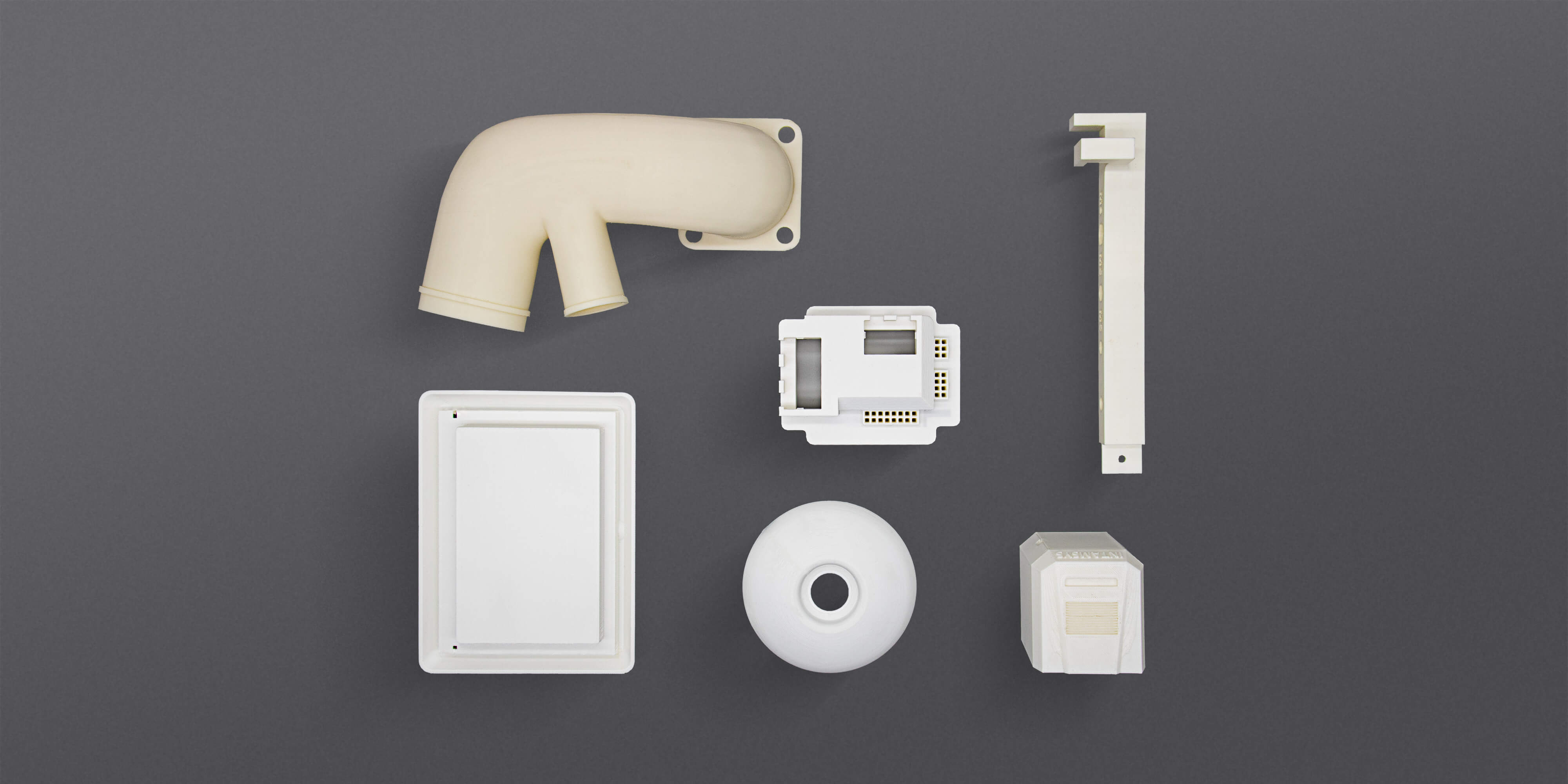

Ensure High-Quality Surface Finish of Printed Parts in ABS/PC/PC-ABS/PA/PA-CF and Other Engineering Materials

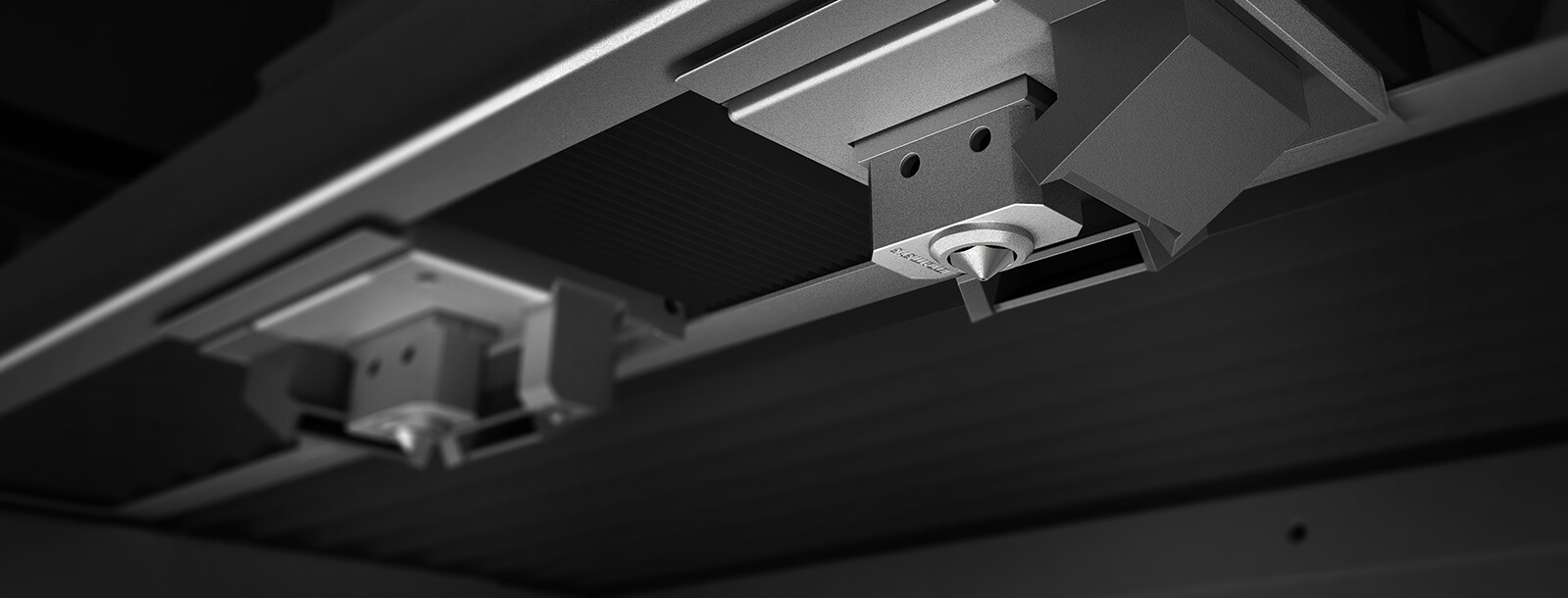

Two printheads can independently operate along the same axis during the printing process,
ensuring the printing quality of complex geometry parts in conjunction with the engineering material support solution.

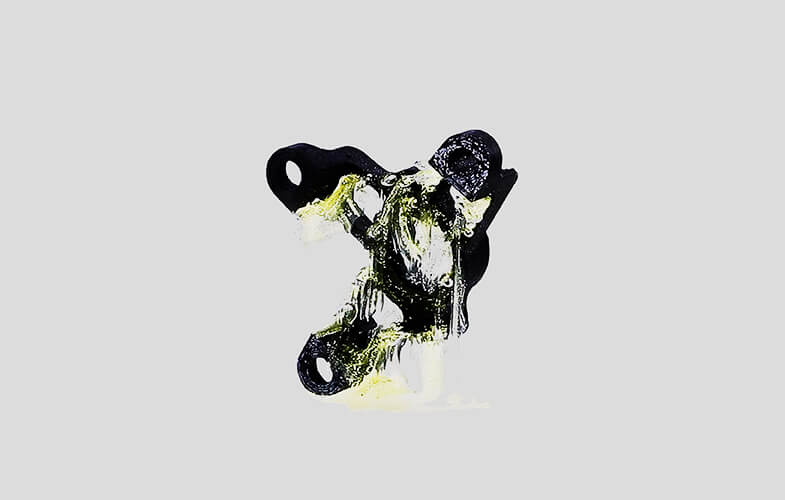

When printing complex geometries such as piping, where manually removing support material is challenging, water-soluble materials can be used. These materials support the structure during printing and dissolve in water afterward, ensuring perfect printing quality.

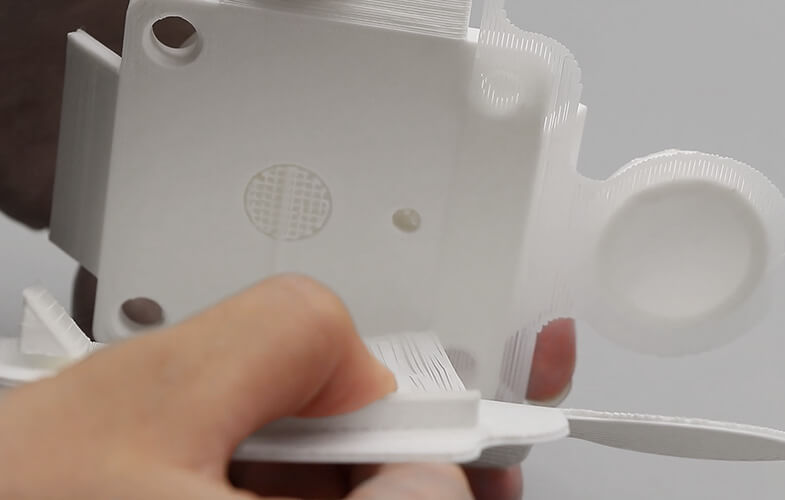

The dual extruder design makes it easy to remove support material without worrying about the roughness of the contact surface caused by peeling.

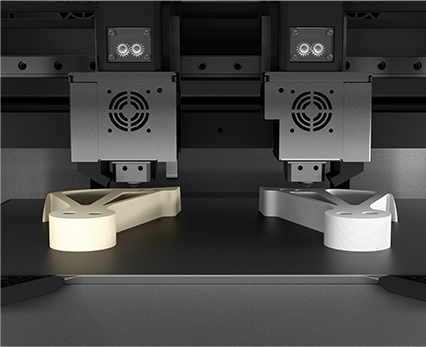

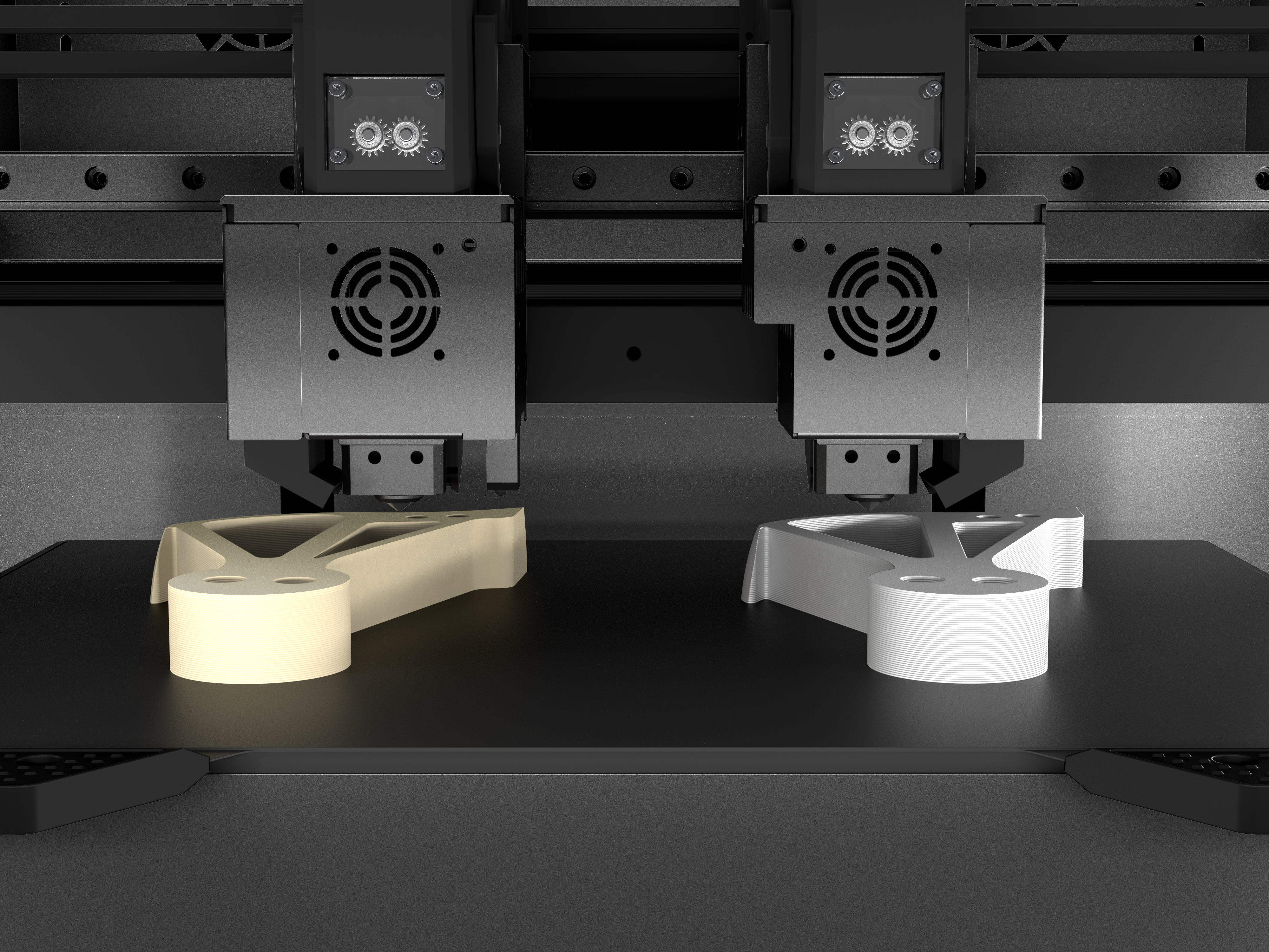

Mirror/Copy Mode
For Improved Batch Printing Efficiency

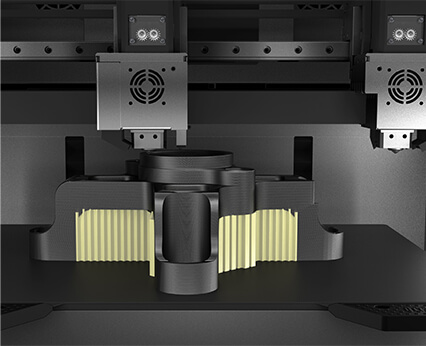

Support Mode Printing Enables
High-Quality Finish Complex Geometries Printing
Accuracy of Printed Parts

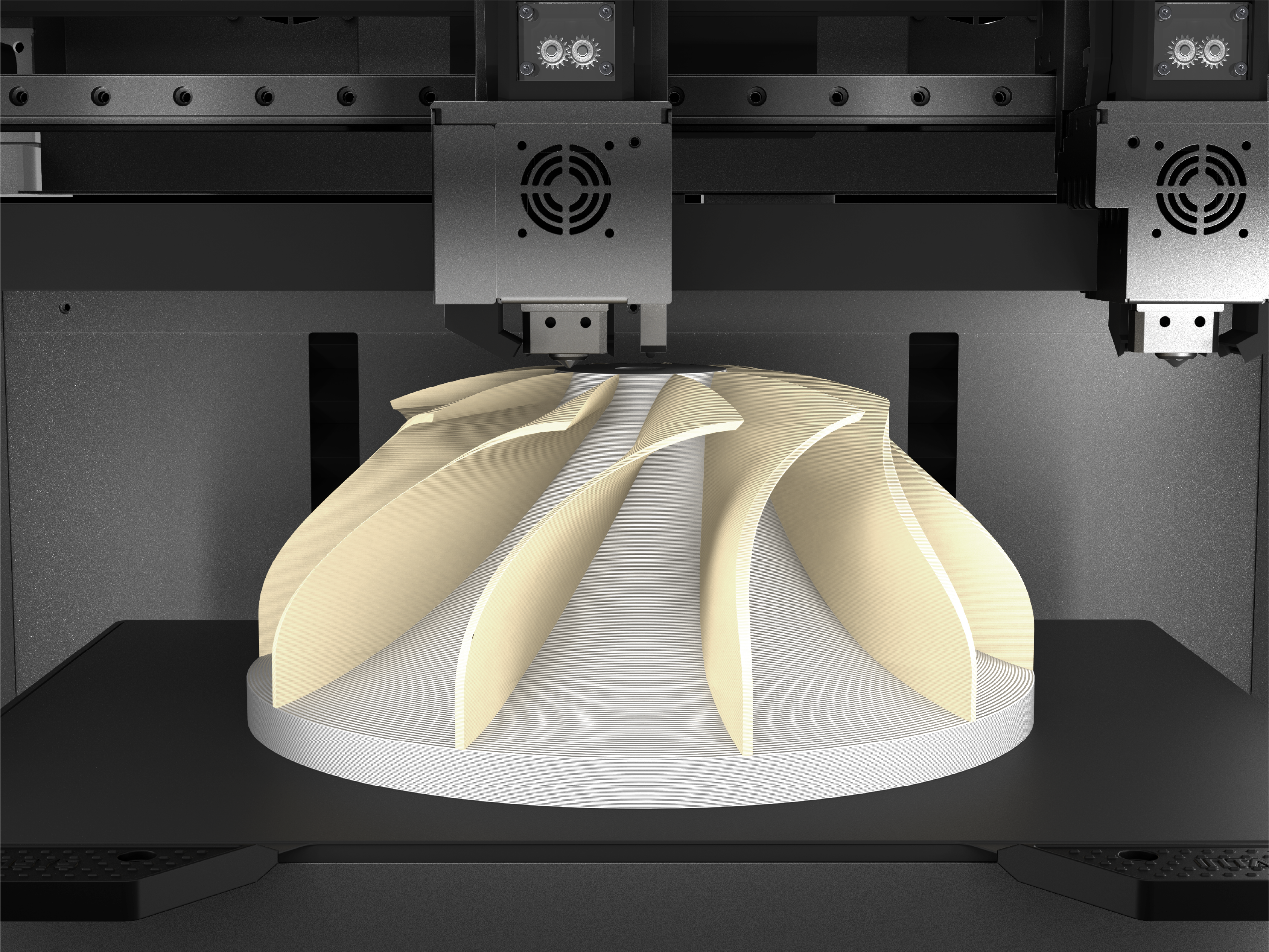

Dual Color Printing Brings More Design Inspiration
FUNMAT PRO 310 Provides a Good Experience for 3D Printing Beginners and Experts Alike

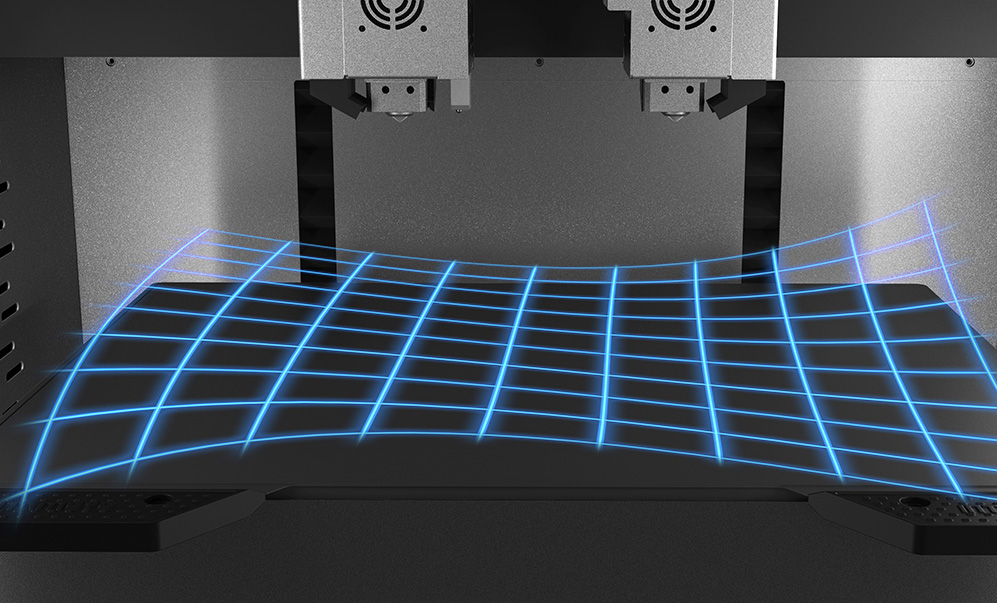

Auto mesh leveling with 100-point surface flatness measurement and automatic Z-axis compensation. Flexible build plate for easy part removal with glue-free bed adhesion.

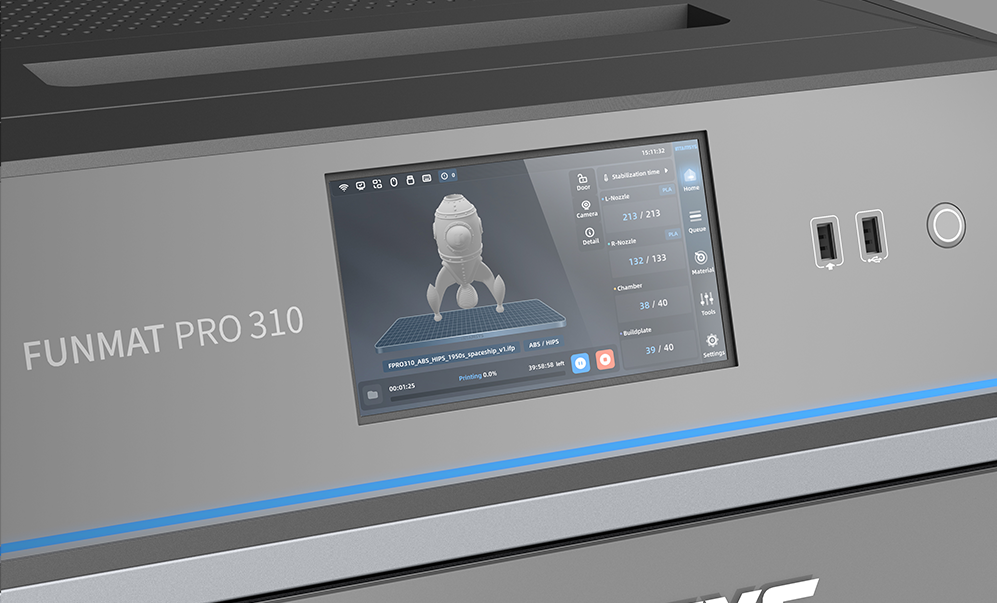

Intelligent interactive design with a user-friendly interface and task queue management function.

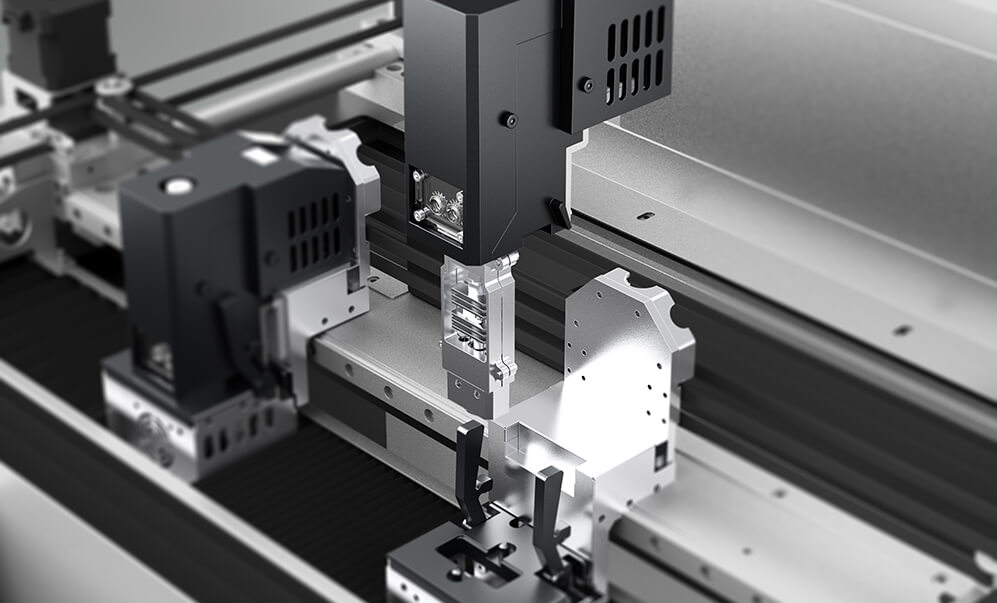

Plug-and-play modular design makes it easy to disassemble and maintain.
オンライン監視と印刷プロセスの最適化を備えたオールインワンの共同製造プラットフォーム
詳細を見る
Seamless Integration with MES to Help Companies Enter Industry 4.0
High-Standard Safety Design to Ensure the Health and Safety of Users
The HEPA filter can capture small particles generated during the printing process, and the activated carbon can absorb volatile chemicals emitted during the process.
Avoid personal danger caused by misoperation during printing.

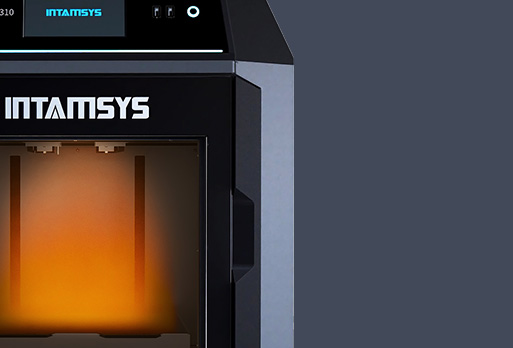

Excellent thermal insulation design (thickened insulation layer, front door with double glass, temperature-resistant cover on the top) while the printer's working.
|
3Dプリンター
|
FUNMAT PRO 310 APOLLO |
FUNMAT PRO 310 NEO |
FUNMAT HT |
FUNMAT PRO 410 |
FUNMAT PRO 610HT |
FUNMAT PRO 310 |
|---|---|---|---|---|---|---|
|
造形サイズ
|
Single Nozzle：305x260x260 mm；Dual Nozzles：260x260x260 mm |
Single Nozzle: |
260 x 260 x 260 mm |
305 x 305 x 406 mm |
610 × 508 × 508 mm |
Single Nozzle: |
|
材料
|
35
PEEK, PEEK-CF, PEEK-GF,PEKK, SP5000, AM200, ABS+, ABS-GF, ABS-HS, ASA, HIPS, PA12-CF, PA6/66, PA6-CF, PC, PC/ABS, PC-FR, PC-PBT, PET-CF, PETG, PET-GF, PLA, PPA-CF, PPA-GF, PPS, PPS-CF, PPS-GF, PVA, SP3030, SP3050, SP5010, TPU95A, KIMYA ABS-ESD, BASF PC/ABS-FR, WANHUA PA12 |
29
ABS+, ABS-GF, ABS-HS, ASA, HIPS, PA12-CF, PA6/66, PA6-CF, PC, PC/ABS, PC-FR, PC-PBT, PET-CF, PETG, PET-GF, PLA, PPA-CF, PPA-GF, PPS, PPS-CF, PPS-GF, PVA, SP3030, SP3050, SP5010, TPU95A, KIMYA ABS-ESD, BASF PC/ABS-FR, WANHUA PA12 |
14
PEEK, PEEK-CF, PEEK-GF, PEKK, ABS, PC, PPA-CF, PPA-GF, PPS, PA12-CF, PA6/66, PA6-CF, ASA, PLA |
30
ABS, ABS+, KIMYA ABS-ESD, VICTREX AMTM 200FIL, VICTREX AMTM450 FIL, ASA, CONVESTRO PA6/66-GF20-FR, HIPS, PA12-CF, PA6/66, PA6-CF, PC, BASF ULTRAFUSE® PC/ABS FR, PC/ABS, PC-FR, PC-PBT, PEEK, PEEK-CF, PEEK-GF, PEKK, PLA, PPA-CF, PPA-GF, PPS, PVA, SP3030, SP3050, SP5000, SP5010, WANHUA PA12 |
36
PEEK, PEEK-CF, PEEK-GF, PEI 1010, PEI 9085, PEKK, PET-CF, PET-GF, PPA-CF, PPA-GF, ABS, ABS+, VICTREX AM™ 200 FIL, ASA, BASF ULTRAFUSE® PPSU, CONVESTRO PA6/66-GF20-FR, HIPS, PA12-CF, PA6/66, PA6-CF, PC, PC/ABS, PC-FR, PLA, PPS, PPSU, PVA, SP3030, SP3050, SP5000, SP5010, SP5040, SP5080, WANHUA PA12 |
16
PA12-CF, PA6/66,PA6-CF,WANHUA PA12, PC, PC/ABS, ABS+, ABS, KIMYA ABS-ESD, ASA, BASFPC/ABS-FR, HIPS, PLA, PVA, SP3030, SP3050 |
|
プリンター寸法/
重量 |
Overall Dimensions: 700 x 655 x 750 mm Overall Weight : 80 kg |
Overall Dimensions: 700 x 655 x 700 mm Overall Weight: 80 kg |
Overall Dimensions: 543 x 501 x 645 mm Overall Weight : 63 Kg |
Overall Dimensions: 728 x 684 x 1480 mm Overall Weight: 230kg |
Overall Dimensions: 1710 x 1425 x 2080 mm With lighthouse: 1710 x 1425 x 2350 mm Overall Weight: 1450 kg |
Overall Dimensions: 700 x 655 x 700 mm Overall Weight: 80 kg |
パンフレット |
ダウンロード |
ダウンロード |
ダウンロード |
ダウンロード |
ダウンロード |
ダウンロード |
ALL FILAMENTS
PA12-CFはカーボンファイバー強化PA12（ナイロン12）のフィラメント、PA6に比べて湿気に対する感度が低い。カーボンファイバー強化により、剛性、強度、耐熱性が大幅に向上、優れた層間結合を提供。
詳細を見る
PCの強度とABSの靭性を組み合わせた材料は印刷しやすく、レイヤーラインを隠す低光沢仕上げ、機能的なプロトタイプや精密な生産部品の印刷に最適。
詳細を見る
高い耐衝撃性、剛性、耐熱性、難燃性を備えた強力で透明な熱可塑性プラスチック。INTAM™ PCは独自の反り防止技術を搭載し、寸法安定性を確保、高要求の生産やプロトタイピング用途に最適。
詳細を見る
